Measuring

Measuring can be as simple
or As Complex as you want

1. We need the Width of the The Cabinet Space for each wall.

2. A picture of that same Space for each wall.

3. The Ceiling Height

4. Window or pass through Size (width and height) and distance from floor. Plus a Picture * See Q & A

Any Special Instructions for Changes you want in existing Lay Out

Tell Us what you wnat in your New Kitchen or Bath

* Try to take the picture straight on or as little angle as possible.

Below are examples of More Complex Measuring Examples. We don't need it but if you can and want to do something like this we Welcome it. Your Remodel should be exciting so the more involvement the better. We are excited to do it for you.

Drawing Plans for new Kitchen Cabinets Group 1

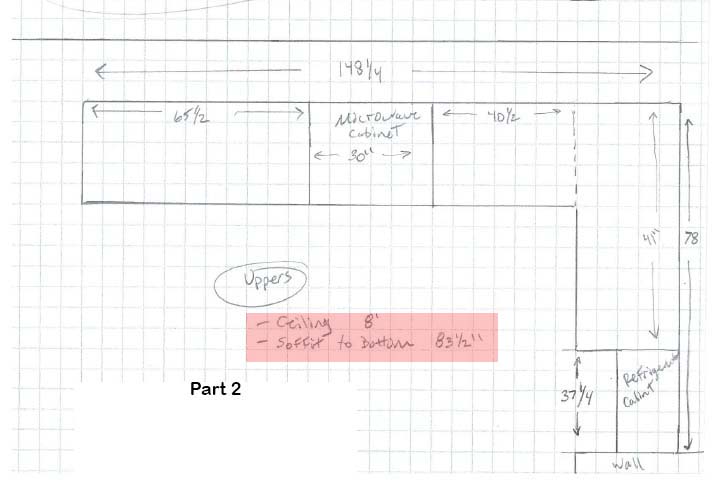

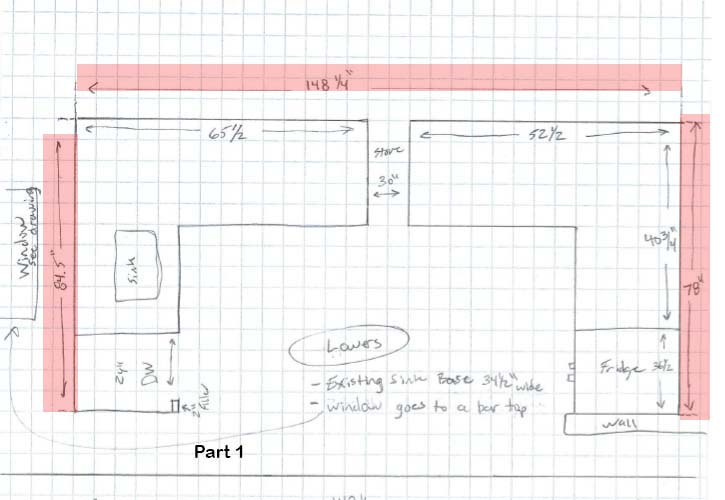

Above and Below Part 1 & Part 2
This is a Great Example of Measuring.
However, The RED Shaded Measurements
along with Pictures is all we needed
The other in formation is very useful

Below is our Project Kitchen

We Have Permission from Customer to Post Images

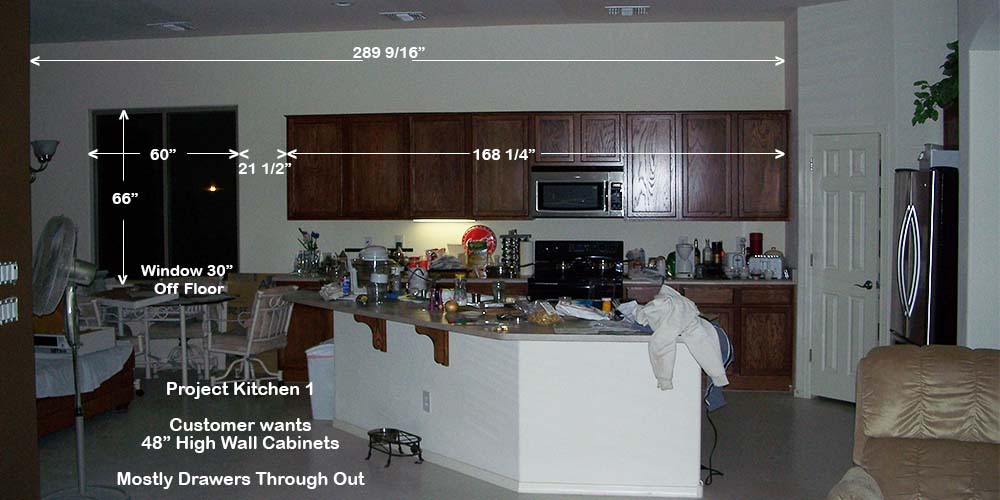

I put the Dimensions on this Image,
The Dimensions were hand written on a separate Page along with
some of the wants for this Kitchen.
its Perfect. As you can see in the Rendering on the Home Page
I changed just a few things.

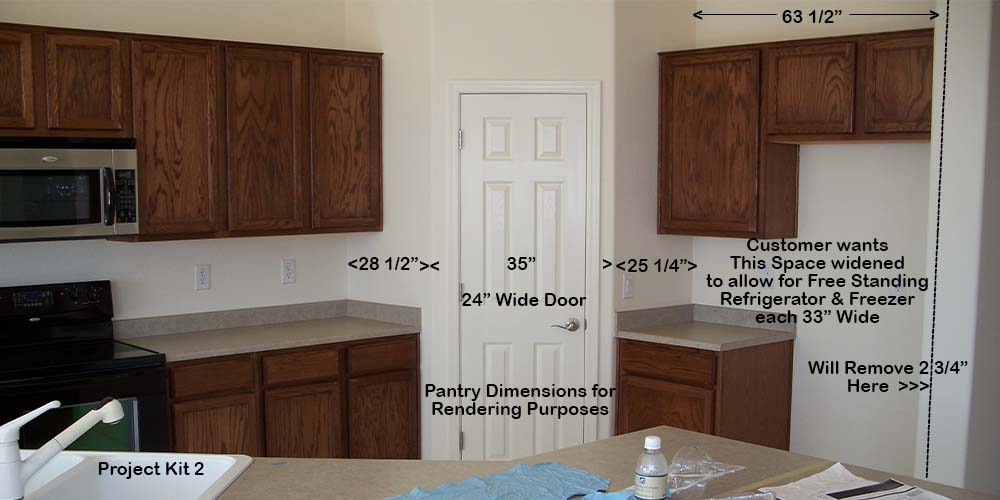

The Window Dimensions will allow me to extend the Cabinets
to the Left and make a better Rendering Image

Customer wanted to keep the Pantry as is.
To the right is the Refrigerator Area.
Customer wanted to Upgrade the Refrigerator
to a matched set Refrigerator and Freezer Each 33" Wide.
The drawing will remove 2 3/4" from the Wall on the Right.

No measurements from the Existing Island were needed.

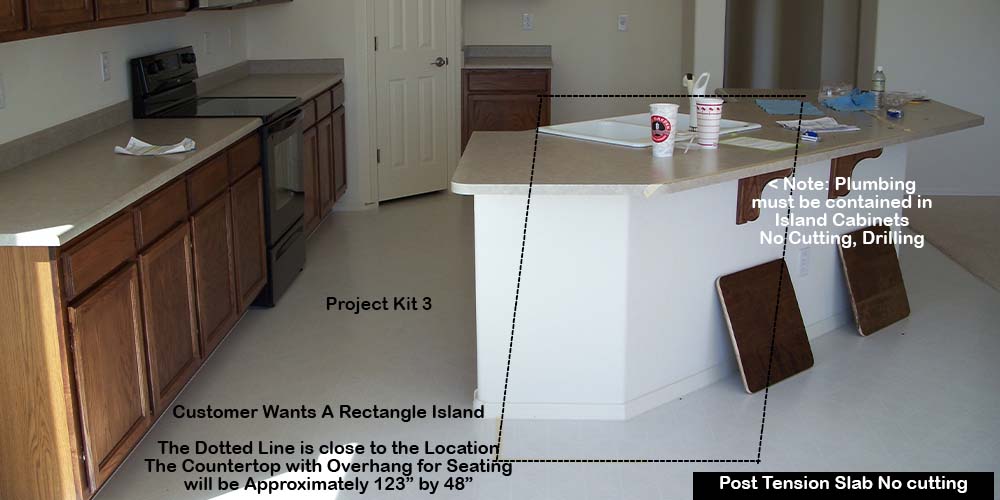

Customer did however want A Rectangle Island w/Cabinets on Backside
A Minimum Distance of 40” Around Island
A Trash Pull Out and A Mixer Lift
This Kitchen is on a Post Tensioned Slab
No Cutting, Drilling or Boring.
This means the Plumbing coming up from Below cannot be moved.
We will be Placing the Island on Top of the Existing Plumbing

Simple or Complex - It's up to you

You own the Drawings, Plans & Cabinet List
Shop Your Plans for Best Price & Compatability
